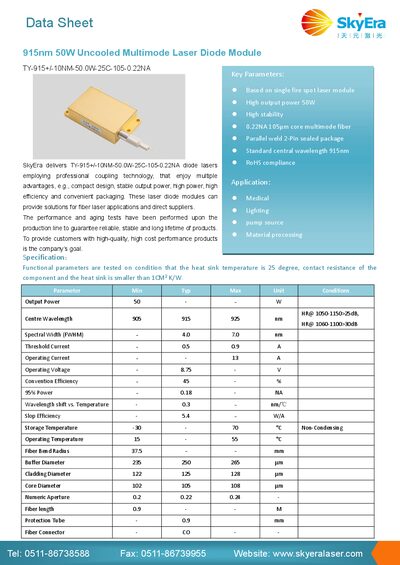

The SkyEra TY-915+/-10NM-50.0W-25C-105.0NA datasheet provides specifications, dimensions, and handling instructions for the 915 nm 50 W uncooled multimode…
The SkyEra TY-915+/-10NM-50.0W-25C-105.0NA is a 915 nm, 50 W uncooled multimode laser diode module designed for medical, lighting, pump source, and material processing applications. It features a 0.22 NA 105 µm core multimode fiber, parallel‑weld 2‑pin sealed packaging, and RoHS compliance.
The datasheet lists key electrical and optical parameters, mechanical dimensions, and safety/handling instructions. It includes recommended operating temperature (15 °C–55 °C), storage limits (‑30 °C–70 °C), and soldering guidelines for currents above 6 A.
| Output Power | 50 W |
|---|---|
| Spectral Width (FWHM) | 4.0 – 7.0 nm |
| Threshold Current | 0.5 – 0.9 A |
| Operating Voltage | 8.75 V |
| Conversion Efficiency | 45 % |
| Storage Temperature | -30 °C to 70 °C |
| Operating Temperature | 15 °C to 55 °C |
The module should be operated between 15 °C and 55 °C.
Solder the pins close to the root, using a maximum temperature of 260 °C for less than 10 seconds.
Avoid eye or skin exposure to direct or scattered radiation and use ESD protection during transport, storage, and operation.
