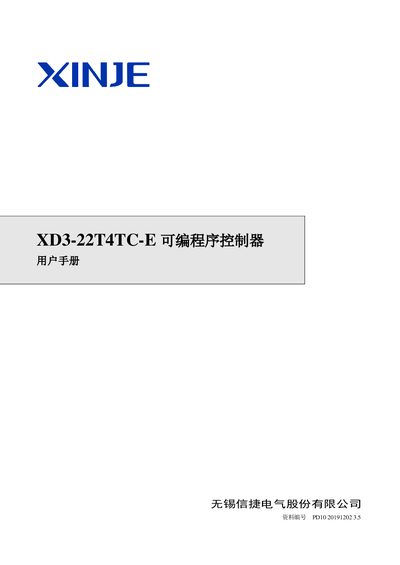

This manual provides operating instructions and specifications for the Xinje XD3-22T4TC-E programmable controller, covering installation, wiring, and…
The Xinje XD3-22T4TC-E is a programmable controller (PLC) designed for logic control and thermocouple input applications. It features 8 switch input points, 14 transistor output points, and 4 thermocouple input channels. The device supports high-speed counting up to 10KHz and includes two RS232 ports and one RS485 port for communication and programming. This manual is written in Chinese.
| Switch Input Points | 8 points (NPN type optocoupler isolated) |
|---|---|
| Switch Output Points | 14 points (Transistor type) |
| Thermocouple Input Points | 4 points |
| High-Speed Counting | 2 channels (10KHz) |
| User Program Capacity | 256KB |
| Total I/O Points | 22 points |
| Operating Temperature | 0°C to 60°C |
| Communication Ports | COM0 (RS232), COM1 (RS232), COM2 (RS485) |
No, this model does not support any form of expansion modules.
The device supports high-speed counting up to 10KHz.
It can be installed on a DIN46277 rail or directly with M3 screws.
