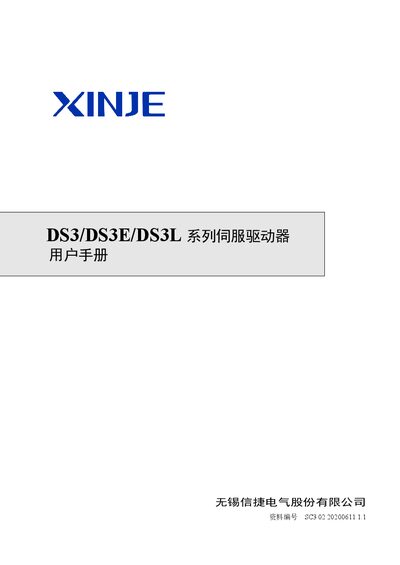

User manual for Xinje DS3/DS3E/DS3L series servo drives covering safety, installation, wiring, operation, tuning and specifications.
The Xinje DS3/DS3E/DS3L series servo drive manual provides detailed guidance for designers, installers, commissioning engineers and maintenance personnel. It includes safety precautions, product inspection, installation steps, wiring diagrams, operation‑panel usage, system operation, gain adjustment and technical specifications.
The document also contains appendices with part numbers, cable references and battery replacement procedures, ensuring users can safely set up and maintain the servo drives in industrial applications. This manual is written in Chinese.
| Battery type | 5号 battery, 3.6 V (ER14505AA3.6V) |
|---|---|
| Battery low‑voltage alarm threshold | ≈2.75 V |
| Encoder resolution | 2500 pulses per revolution (2500 P/R) |
| Recommended battery replacement interval | Every 2 years |
The manual recommends replacing the battery every two years.
The standard encoder resolution is 2500 pulses per revolution (2500 P/R).
The alarm triggers when the battery voltage drops to about 2.75 V or lower.
