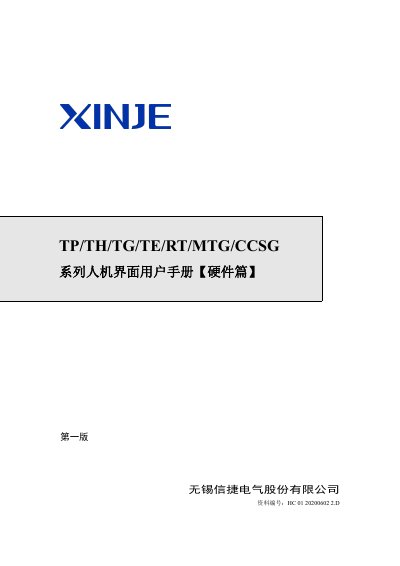

Hardware user manual for Xinje TP/TH/TG/TE/RT/MTG/CCSG series human‑machine interfaces, covering features, specs, wiring and installation.
This manual provides a complete hardware overview of Xinje's TP/TH/TG/TE/RT/MTG/CCSG series human‑machine interfaces (HMIs). It describes product features, model naming conventions, general specifications, mechanical structure, interface details, dimensions and installation guidelines for each sub‑series.
The document also includes instructions for using the dedicated programming software, performing firmware downloads, and safety precautions for power supply and environmental conditions. This manual is written in Chinese.
| Display size | 4.7" (TP460-L) or 7.0" (TP760-T) |
|---|---|
| Display type | Monochrome LCD (L) or 256‑color TFT (T) |
| Resolution | 240×128 (monochrome) or 480×234 (256‑color) |
| Input voltage | DC24V (range 22‑26V) |
| Operating temperature | 0 °C to 50 °C |
| Front‑panel protection | IP65 |
The device must be powered by a 24 V DC supply, with an acceptable range of 22 V to 26 V.
