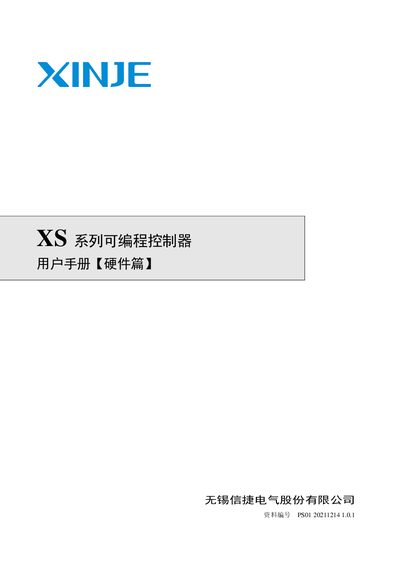

Hardware user manual for the Xinje XS series programmable controller covering safety, specifications, wiring, and maintenance.
The Xinje XS series programmable controller hardware manual provides detailed information on safety precautions, system composition, power specifications, input/output wiring, and maintenance procedures. It is intended for qualified personnel who install, configure, and service the controller.
The document includes product overviews for both the XSDH and XS3 sub‑series, technical specifications such as I/O points, environmental limits, and communication interfaces, as well as troubleshooting guidance and a Q&A appendix. This manual is written in Chinese.
| Operating temperature range | 0 °C ~ 60 °C |
|---|---|
| Operating humidity range | 5 % ~ 95 % (no condensation) |
| Noise voltage tolerance | 1000 Vp, 1 µs pulse |
| Communication port 1 | RS232 (COM1) |
| Communication port 2 | RS485 (COM2) |
| Communication port 3 | RJ45 LAN1 – Ethernet |
| Communication port 4 | RJ45 LAN2 – EtherCAT |
| I/O points (XSDH series) | 60 points |
| Input points (XSDH series) | 36 points |
| Output points (XSDH series) | 24 points |
| Processor core frequency (XSDH series) | 1 GHz |
| Processor core frequency (XS3 series) | 800 MHz |
| Data memory | 32 MB |
All external power sources must be disconnected before installing the controller.
The controller operates between 0 °C and 60 °C and in humidity from 5 % to 95 % (no condensation).
