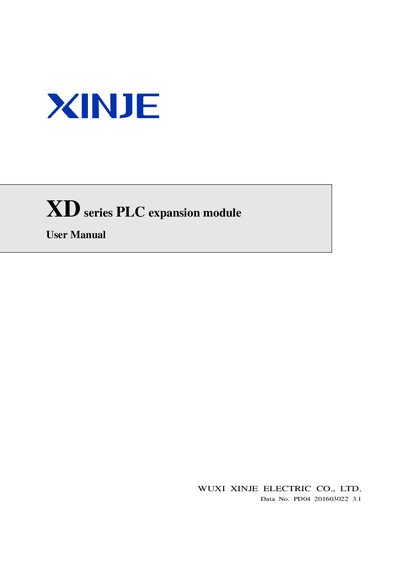

Xinje XD Series PLC Expansion Module User Manual

About this manual

The Xinje XD series PLC expansion modules provide analog input, analog output, temperature, pressure and I/O expansion functions for PLC systems. The manual details each module type, dimensions, part names, specifications, installation steps, wiring diagrams and programming examples.

Modules can be mounted on a DIN46277 rail or fixed with M3 screws, and up to ten XD‑EnXmY expansion modules may be connected to an XD3 series PLC. The document also includes a X‑NET relay module for RS485 communication and guidelines for safe operation.

What's inside

• Modules Introduction
• Analog Input Module XD‑E8AD
• Analog Input/Output Module XD‑E4AD2DA
• Analog Input Module XD‑E4AD
• Analog Output Module XD‑E2DA
• Pressure Modules (XD‑E1WT‑A, XD‑E2WT‑A)
• Temperature Control Modules (PT100, K‑Type)
• I/O Expansion Module XD‑ENXMY
• X‑NET Relay Module JR‑EH
