This manual covers installation, wiring, operation, parameter settings, gain adjustment, and Modbus-RTU communication for the Xinje DS5K series servo drive.

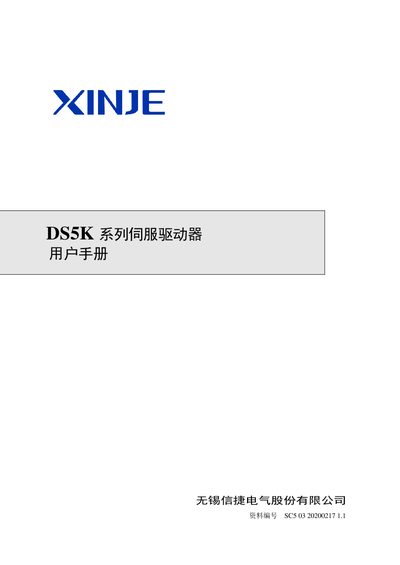

The document is a user manual for the Xinje DS5K Series Servo Drive. It provides comprehensive instructions for system selection, installation, cabling, and operation panel usage. The guide is intended for designers, installers, debuggers, and maintenance personnel of servo systems.
Key topics include detailed safety precautions, wiring diagrams for main circuits and signal terminals, various control modes (position, speed, torque), automatic gain adjustment procedures, alarm analysis, and Modbus-RTU communication protocols. It also includes appendices with parameter tables and application cases. This manual is written in Chinese.
The manual states that the maximum length for signal input lines is 3 meters.
For PG feedback lines, the maximum allowed length is 20 meters.
If multiple power cycles are needed, they must be controlled to no more than once every 2 minutes.
