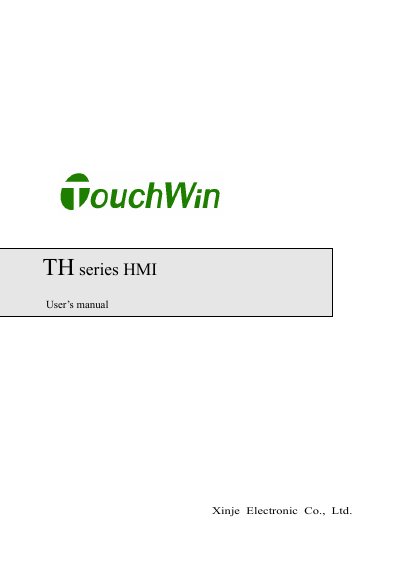

This manual is the user manual for TH series touch screen produced by Xinje Electronic Co., Ltd. The manual covers hardware, software, and application aspects, including features, specifications, installation, communication connection, how to use the editing software, and examples.
This manual guides end users, engineers and technicians on the proper operation, installation and maintenance of the Xinje TH series Human‑Machine Interface touch screens. It covers hardware structure, software editing with TouchWin, and application examples.
Safety precautions, hardware dimensions, interface options and detailed specifications are listed, along with step‑by‑step instructions for creating projects, downloading data and configuring the devices for industrial use. This manual is written in Chinese.
| Electrical Input Voltage | DC20‑DC28V |
|---|---|
| Consumption Current | 130 mA |
| Screen Size | 4.3 inch |
| Resolution | 480 × 272 |
| Screen Life | > 50 000 hours |
| Screen Memory | 8 MB |
Do not bundle the power line with the communication cable and keep them at least 10 cm apart; shut off power if abnormal smell or sound occurs; avoid striking or pressing the panel with hard objects.
The TH series offers LCD sizes of 4.7", 7", 8", 10.1" and 10.4".
