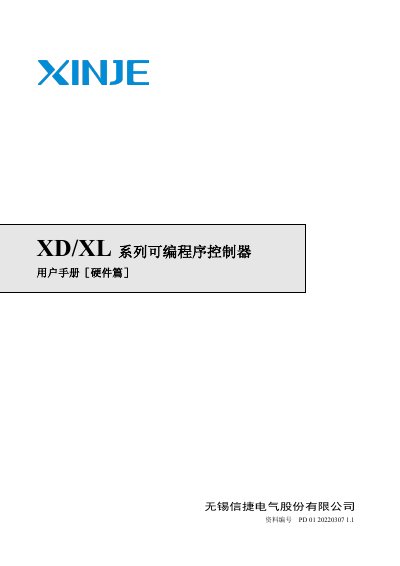

The Xinje XD/XL Series Programmable Controller User Manual (Hardware) details specifications, wiring, power, I/O, installation, and maintenance.
This hardware‑focused user manual introduces the Xinje XD/XL series programmable controllers. It covers product overview, mechanical dimensions, terminal arrangements, power specifications, input and output wiring methods, system composition, and procedures for operation, debugging, and routine maintenance.
Safety precautions are emphasized throughout, including the need to disconnect all external power before wiring, keep control and power wiring separate, and follow proper grounding practices. The manual also provides guidance on module expansion, communication interfaces, and soft‑element switching. This manual is written in Chinese.
| I/O points | 10, 16, 24, 30, 32, 48, 60 |
|---|---|
| Output types | Transistor, Relay, Transistor‑Relay hybrid, Differential |
| Input types | PNP, NPN, Differential |
| Power supply types | AC 220 V, DC 24 V |
| CPU architecture | 32‑bit CPU |
| Scan time | 10,000 steps per 1 ms |
| Program capacity | Up to 1 MB (XLH up to 2 MB) |
| Communication ports | 1–4 ports supporting RS232, RS485, RJ45 |
The XD series offers I/O point options of 10, 16, 24, 30, 32, 48, and 60 points.
The controller can be powered from AC 220 V or DC 24 V sources.
The controller includes 1 to 4 communication ports that support RS232, RS485, and RJ45 connections.
