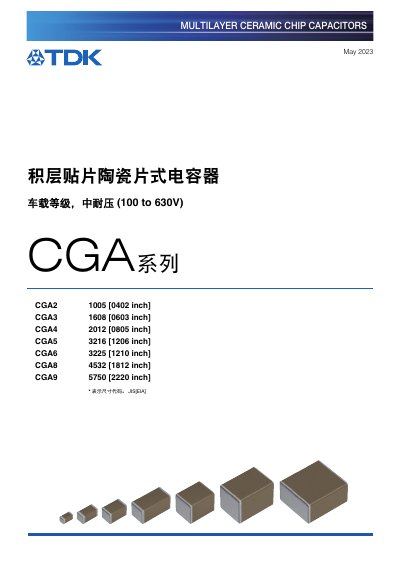

Product catalog for TDK CGA series multilayer ceramic chip capacitors designed for automotive applications with rated voltages from 100 to 630V.
This document is a product catalog for the TDK CGA series of multilayer ceramic chip capacitors, specifically designed for automotive applications. The series supports rated voltages ranging from 100V to 630V and offers a maximum capacitance value of 15µF. The capacitors are available in various package sizes, including CGA2 through CGA9, covering dimensions from 0402 inch to 2220 inch.
The catalog details the product specifications, usage precautions, and application areas such as wireless charging coil units, DC-DC converters, and inverter boards. It includes detailed charts for capacitance ranges based on different thicknesses and temperature characteristics (C0G, X7R, X7S, X7T), along with identification codes for series name, size, voltage, and tolerance. This manual is written in Chinese.
| Rated Voltage Range | 100 to 630V |
|---|---|
| Maximum Capacitance | 15µF |
| Operating Temperature Range | -55 to +125°C |
| Compliance Standard | AEC-Q200 |
| Package Sizes | CGA2 to CGA9 |
They are suitable for wireless charging coil units, DC-DC converters, inverters, on-board chargers, and high-voltage circuits such as decoupling, smoothing, buffering, and resonant circuits.
No, the company does not guarantee performance or quality for specific uses such as aviation, medical equipment (excluding Class I and II), or nuclear power-related equipment.
The maximum capacitance value for the CGA series is 15µF.
