This product is a high voltage ceramic capacitor with high reliability and uses TDK original dielectric material and copper electrode material. It also conforms to the RoHS directive and is lead-free. The external resin coating is also halogen-free.

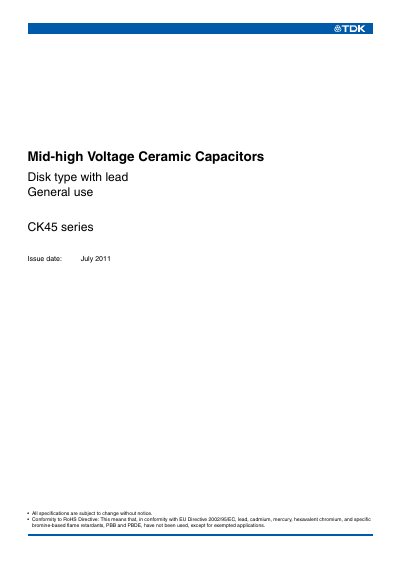

The CK45 series from TDK are mid‑high voltage ceramic capacitors offered in a disk‑type with lead configuration for general‑use applications. They use TDK's original dielectric material and copper electrodes, and are compatible with halogen‑free external resin coatings.
Key specifications include rated voltages of 1 kV, 2 kV and 3 kV, an operating temperature range of –25 °C to +105 °C, capacitance tolerance of ±10 % (B class), and RoHS compliance with no lead, cadmium, mercury, hexavalent chromium or brominated flame retardants.
| Operating Temperature Range | –25 °C to +105 °C |
|---|---|
| Lead‑wire Diameter | 0.6 ± 0.05 mm |
The CK45 capacitors operate from –25 °C up to +105 °C.
