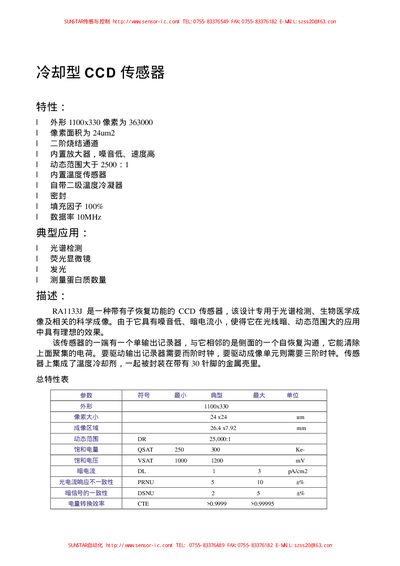

The SUNSTAR RA11 33J CCD image sensor datasheet provides specifications, dimensions, performance parameters, and application information.
The RA11 33J is a CCD image sensor designed for imaging, biomedical and scientific applications. It offers low noise, high dynamic range, high sensitivity and high resolution, with a pixel array of 1100 × 330 and a pixel size of 24 µm².
Key performance figures include a dynamic range of 25,000:1, readout clock of 10 MHz, dark current of 1‑3 pA/cm², and high charge‑to‑noise ratios. The datasheet also lists physical dimensions, electrical characteristics and contact information for SUNSTAR. This manual is written in Chinese.
| Pixel array | 1100 × 330 |
|---|---|
| Dynamic range | 25,000:1 |
| Readout clock | 10 MHz |
| Dark current | 1‑3 pA/cm² |
| PRNU | 5‑10 % (±) |
| DSNU | 2‑5 % (±) |
| CTE | >0.9999 / >0.99995 |
It provides a dynamic range of 25,000:1.
The readout clock operates at 10 MHz.
The dark current is specified as 1‑3 pA/cm².
