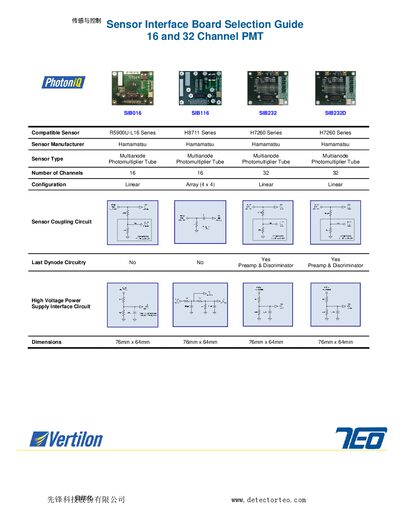

This guide provides an overview of Sunstar's sensor interface boards (SIB016, SIB116, SIB232, SIB232D). It lists the compatible photomultiplier tube (PMT) sensors, the number of channels each board supports, and the electrical coupling options.
The document also details physical specifications such as board dimensions (76 mm × 64 mm) and highlights features like pre‑amplifier/discriminator inclusion and high‑voltage power supply interfaces.
| Number of Channels | 16 (SIB016, SIB116) or 32 (SIB232, SIB232D) |
|---|---|
| Configuration | Linear Array (4 × 4) for 16‑channel boards; Linear for 32‑channel boards |
| Sensor Coupling Circuit | Last Dynode Circuitry – No for 16‑channel boards, Yes for SIB232D |
| Preamp & Discriminator | Included |
| Dimensions | 76 mm × 64 mm |
The boards are compatible with sensors from Hamamatsu.
The SIB232D board measures 76 mm by 64 mm.
Yes, both boards include a pre‑amplifier and discriminator.
