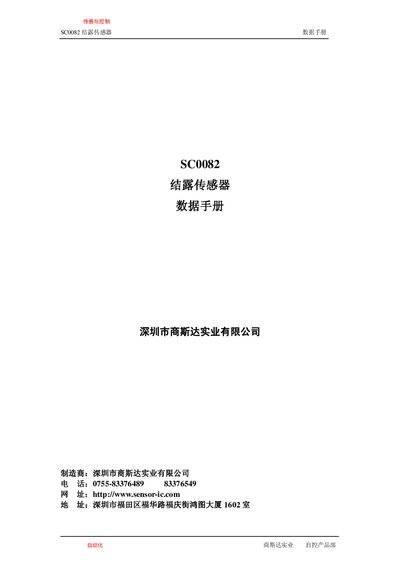

Technical data sheet for the Sunstar SC0082 condensation sensor, detailing specifications, features and usage guidelines.
The SC0082 condensation sensor is a positive‑type switch component that is insensitive to low humidity but highly sensitive to high humidity. It operates on DC voltage, offers fast response, and provides reliable performance in demanding environments.
The document includes an introduction, key features, typical applications, mechanical dimensions, technical parameters, handling notes, and a characteristic curve, followed by company information and contact details. This manual is written in Chinese.
| Maximum operating voltage | DC 1 V |
|---|---|
| Operating temperature range | +1 °C to 60 °C |
| Operating humidity range | 1 %RH to 100 %RH |
| Condensation test range | 94 %RH to 100 %RH |
| Response speed | ≤ 10 seconds |
It is not sensitive to low humidity and only responds to high humidity.
Do not use solvents; gently wipe with a cotton swab under steam.
The sensor can operate up to DC 1 V.
