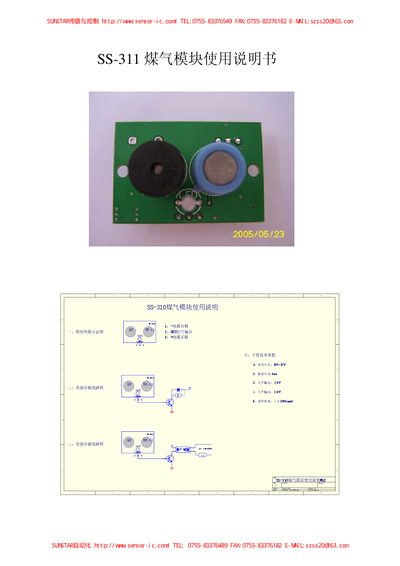

This manual provides wiring diagrams, technical parameters, and usage instructions for the Sunstar SS-311 gas module.
The Sunstar SS-311 gas module user manual describes how to connect the module, including power and signal wiring, and provides diagrams for DC and AC load connections. It also lists the main technical specifications such as operating voltage, static current, output levels, and detection concentration.
Additional information includes the company's contact details and a brief overview of Sunstar's business areas, emphasizing its role as a supplier of sensors and electronic components. This manual is written in Chinese.
| Operating Voltage | DC9-12V |
|---|---|
| Static Current | 0.8 mA |
| High Level Output | 5 V |
| Low Level Output | 0 V |
| Detection Concentration | >2000 ppm |
The module operates on a DC voltage of 9 to 12 V.
The static current is 0.8 mA.
It can detect gas concentrations greater than 2000 ppm.
