The M7610 is a PIR (passive infrared) controller designed for light control, alarm systems, motion detectors and similar applications. It offers selectable ON/OFF/AUTO modes, override functions, and built‑in regulation for reliable operation.

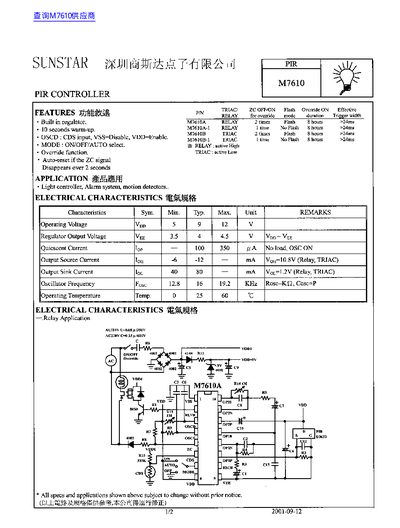

The datasheet lists the operating voltage range, regulator output, current consumption, oscillator frequency, temperature range and pin assignments, allowing designers to integrate the controller into their circuits with confidence.
| Operating Voltage | 5‑12 V (typical 9 V) |
|---|---|
| Regulator Output Voltage | 3.5‑4.5 V |
| Quiescent Current | 100‑350 µA |
| Output Source Current | -6 to -12 mA |
| Output Sink Current | 40‑80 mA |
| Oscillator Frequency | 12.8‑19.2 kHz (typical 16 kHz) |
| Operating Temperature | 0‑60 °C (typical 25 °C) |
It operates from 5 V to 12 V, with a typical value of 9 V.
The oscillator runs between 12.8 kHz and 19.2 kHz, typically set to 16 kHz.
It can be used in light controllers, alarm systems, motion detectors and similar applications.
