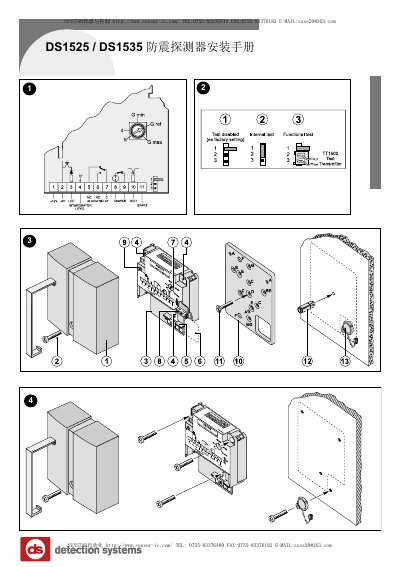

User manual for Sunstar DS1525/DS1535 sensors covering installation, configuration, operation, and testing.
The Sunstar DS1525 and DS1535 are electronic sensors designed for industrial applications. This manual provides the necessary information for installing, wiring, configuring, and testing the devices. It includes technical parameters, safety notes, and contact details for technical support.
The document also lists the electrical characteristics, mechanical dimensions, and recommended operating conditions. Users can refer to the wiring diagrams and step‑by‑step procedures to ensure proper integration of the sensors into their systems. This manual is written in Chinese.
| Operating voltage range | 9‑15 VDC |
|---|---|
| Output voltage levels | 0.7 V – 0 V (low), 1.4 V – 2 V (high) |
| Dimensions (L×W×H) | 3.93 × 3.15 × 1.30 mm |
The sensor operates from a supply voltage of 9 to 15 VDC.
The low‑level output ranges from 0 V to 0.7 V, and the high‑level output ranges from 1.4 V to 2 V.
