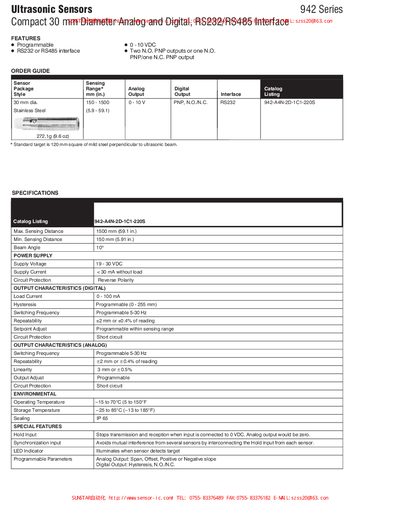

Technical overview, specifications, wiring diagram and accessories for SUNSTAR 942 Series ultrasonic sensors.
About this manual
The SUNSTAR 942 Series ultrasonic sensors are compact 30 mm diameter devices available with analog, digital, RS‑232 or RS‑485 interfaces. They offer programmable output parameters, LED indicators and optional synchronization inputs for multiple‑sensor installations.
The document provides key specifications, wiring diagrams, mounting dimensions, a list of compatible accessories, and replacement part numbers, helping users select and integrate the sensors into their systems.
What's inside
- Features
- Specifications
- Wiring Diagram
- Mounting Dimensions
- Accessories
- Replacement Listings
- Special Features
- Environmental Ratings
- Output Characteristics (Digital)
- Output Characteristics (Analog)
