The SSP‑T7‑F is an ultra‑thin surface‑mount quartz crystal unit for low‑frequency applications, with 32.768 kHz frequency and RoHS compliance.
The SSP‑T7‑F quartz crystal is a surface‑mount, ultra‑thin type (height 1.8 mm max) designed for automatic, high‑density mounting. It features a plastic mold package, excellent shock and heat resistance, and complies with RoHS directives. The crystal provides a nominal frequency of 32.768 kHz and is suitable for a wide range of portable electronic devices.

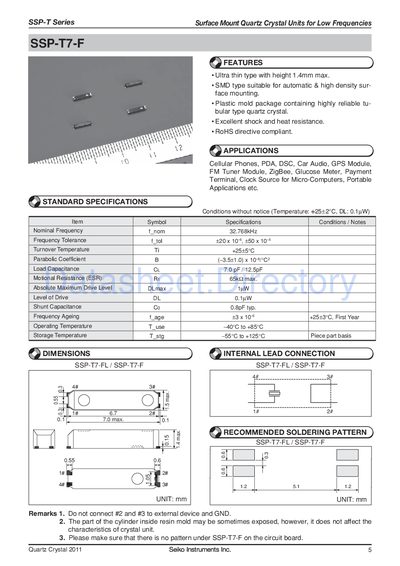

The datasheet lists detailed specifications such as frequency tolerance, load capacitance, ESR, drive levels, and operating temperature ranges. Recommended soldering patterns and internal lead connections are also provided, along with a list of typical applications including cellular phones, PDAs, car audio, GPS modules, and more.
| Height | 1.8 mm max |
|---|
Yes, the crystal complies with the RoHS directive.
It is suitable for cellular phones, PDA, DSC, car audio, GPS modules, FM tuners, ZigBee, glucose meters, payment terminals, clock sources for micro‑computers, and other portable applications.
