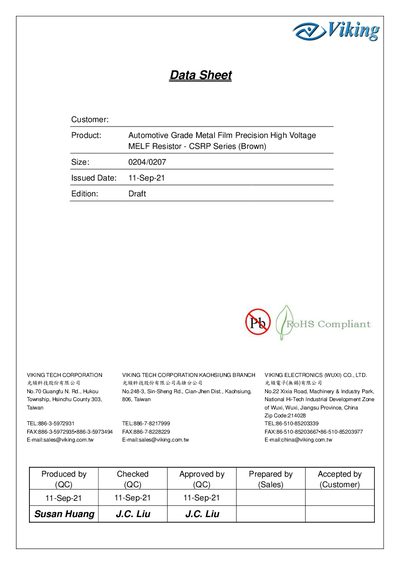

Technical data sheet for Viking CSR P Series (Brown) automotive‑grade high‑voltage MELF resistors.
The CSR P Series (Brown) is an automotive‑grade metal‑film MELF resistor offering high voltage capability, tight tolerance, and RoHS‑compliant construction. It complies with AEC‑Q200 and is suitable for industrial, telecommunication, medical, and test equipment applications.
The document provides detailed electrical specifications, mechanical dimensions, packaging options, and environmental test results, including temperature range, overload voltage, and reliability data per MIL‑STD and IEC standards.
| Resistance range | 340 kΩ – 3.4 MΩ |
|---|---|
| Tolerance | ±0.1 % (tightest) |
| Temperature coefficient | ±50 ppm/℃; ±25 ppm/℃ |
| Power rating | Up to 1 W (2/5 W for 0204) |
| Maximum operating voltage | 500 V (0204) / 1000 V (0207) |
| Package dimensions (0204) | L 3.5 mm × ΦD 1.4 mm |
