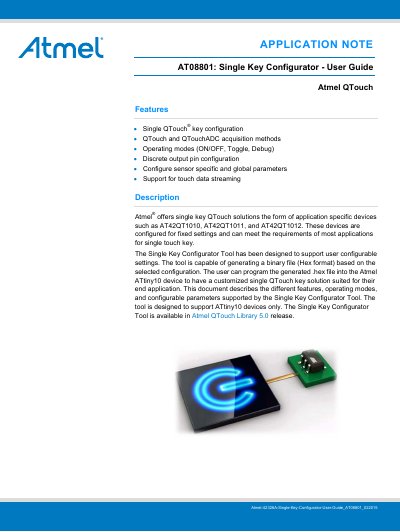

The Atmel ATtiny10 Single Key Configurator User Guide explains the tool’s operation modes, QTouch parameters, and how to generate and program the .hex file.
This guide describes the Single Key Configurator Tool that configures ATtiny10 devices for single‑touch key applications. It covers the three operation modes—On/Off, Toggle, and Debug—and provides details on QTouch and QTouchADC acquisition methods.
The document also explains how to set sensor parameters, generate a binary .hex file, and program the ATtiny10. Appendices cover the debug output format and revision history.
| Pins per channel | QTouch: 2, QTouchADC: 1 |
|---|---|
| Peripheral used | QTouch: GPIO, QTouchADC: ADC |
| Debug clock pin | PB3 |
| Debug data pin | PB0 |
| Debug clock frequency | ≈500 kHz |
The tool is designed to support ATtiny10 devices only.
The tool can generate a binary .hex file that you program into the ATtiny10 device.
The tool supports On/Off mode, Toggle mode, and Debug mode.
In debug mode, the RESET pin (PB3) is used as the debug clock pin and must be set as an I/O pin via the RSTDISBL fuse option.
