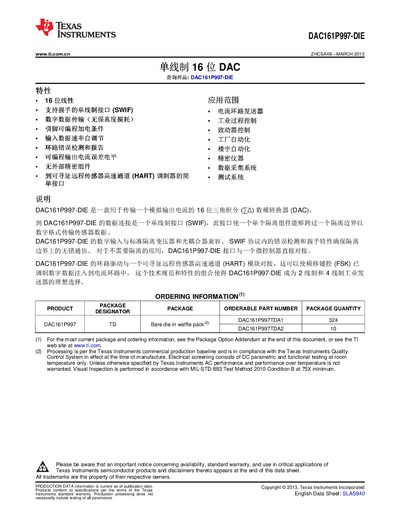

The Texas Instruments DAC161P997-DIE datasheet describes a 16‑bit single‑wire Δ‑Σ DAC with SWIF interface, specifications, packaging, and ordering information.
The DAC161P997-DIE is a 16‑bit Δ‑Σ digital‑to‑analog converter that transmits a single analog output current. It uses a single‑wire (SWIF) interface with handshake protocol, supports programmable output current, and can communicate with HART‑enabled remote sensors.
The document provides detailed ordering information, package options (TDA1 and TDA2), bond‑pad coordinates, and compliance notices. It also includes handling precautions, ESD warnings, and legal disclaimer statements for designers integrating the part into their applications. This manual is written in Chinese.
| Interface | Single‑wire (SWIF) |
|---|---|
| Package TDA1 quantity | 324 units |
| Package TDA2 quantity | 10 units |
It uses a single‑wire (SWIF) interface.
It is offered in TDA1 (324 units) and TDA2 (10 units) packages.
