The ADMOTECH ADBF 7500/625-P pin‑type cavity filter operates from 7.125 GHz to 7.750 GHz with 625 MHz bandwidth and low insertion loss.

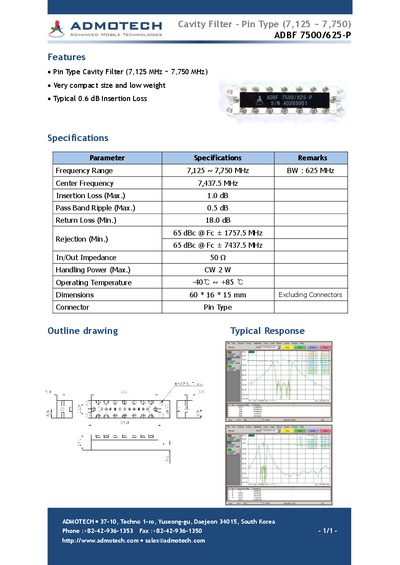

The ADMOTECH ADBF 7500/625-P is a pin‑type cavity filter designed for compact, lightweight applications. It provides a center frequency of 7.4375 GHz, a maximum insertion loss of 1.0 dB, and a pass‑band ripple of 0.5 dB, meeting demanding RF performance requirements.
The filter operates with a 50 Ω impedance, can handle up to 2 W continuous wave power, and functions over an ambient temperature range of –40 °C to +85 °C. Its physical dimensions are 60 × 16 × 15 mm (excluding connectors), and it includes a pin‑type connector for easy integration.
| Frequency Range | 7,125 ~ 7,750 MHz |
|---|---|
| Bandwidth | 625 MHz |
| Center Frequency | 7,437.5 MHz |
| Insertion Loss (Max) | 1.0 dB |
| Pass‑Band Ripple (Max) | 0.5 dB |
| Return Loss (Min) | 18.0 dB |
| Rejection (Min) @ Fc ± 1,757.5 MHz | 65 dBc |
| Impedance | 50 Ω |
| Handling Power (Max) CW | 2 W |
| Operating Temperature | -40 °C ~ +85 °C |
| Dimensions (excluding connectors) | 60 × 16 × 15 mm |
It covers 7,125 MHz to 7,750 MHz.
The maximum insertion loss is 1.0 dB.
It can handle up to 2 W continuous wave power.
The filter operates from –40 °C to +85 °C.
