ST ST7565 LCD Controller/Driver Datasheet

Technical datasheet for the ST7565 65 × 132 dot‑matrix LCD controller/driver covering specifications, pinout and timing.

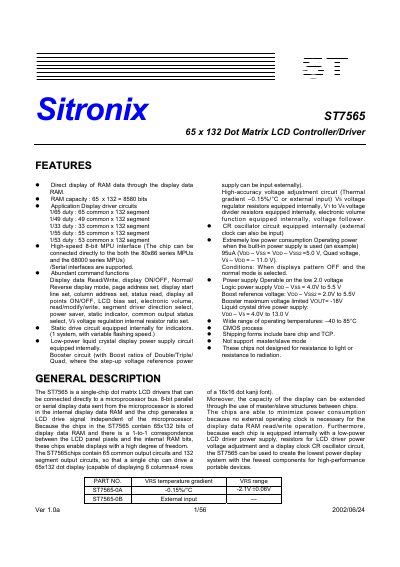

ST ST7565 LCD Controller/Driver Datasheet - cover page
Brand
S&T
Category
Other Electronics
Document type
Datasheet
Language
English
Pages
56
File format
PDF
File size
463 KB
Published
01 October, 2026
Updated
01 October, 2026
MD5 checksum
440E3640E1FD210129F4675D585A4856

About this manual

The ST7565 is a single‑chip dot‑matrix LCD controller/driver that can be connected directly to an 8‑bit or 16‑bit microprocessor bus. It provides 65 × 132 bits of display RAM (8580 bits) and supports both parallel and serial interfaces. The device includes built‑in power‑supply circuits, voltage regulators and a low‑power LCD driver, enabling operation from a 4.0 V to 5.5 V logic supply.

The document details pin dimensions, electrical characteristics, timing diagrams, power‑supply pin functions and reset timing. It also lists revision history and mechanical drawing data for the chip package.

What's inside

  • General Description
  • Pin Dimensions
  • Pin Descriptions
  • Power Supply Pins
  • System Bus Connection Pins
  • Timing
  • Reset Timing
  • Revisions

Specifications

Display RAM capacity65 × 132 = 8580 bits
Logic power‑supply voltage range4.0 V to 5.5 V
Maximum VOUT voltage-18 V
Operating temperature range-40 °C to 85 °C
Chip size9760 µm × 2440 µm

Frequently asked questions

What is the display RAM capacity of the ST7565?

The ST7565 provides 65 × 132 bits of display RAM, which equals 8580 bits.

What voltage range does the ST7565 operate on?

It operates from a logic power supply of 4.0 V to 5.5 V.

What is the maximum output voltage (VOUT) for the LCD driver circuit?

The maximum VOUT is –18 V.

Download PDF (463 KB)
