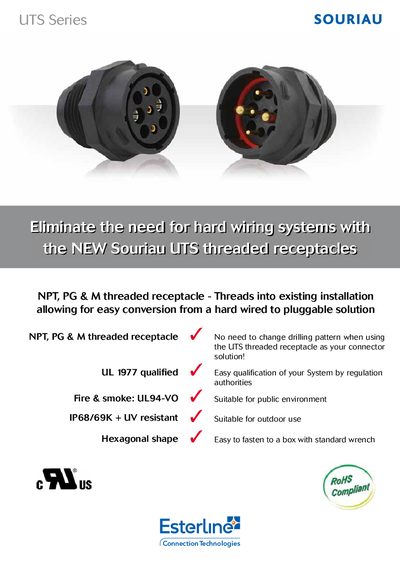

This document presents the Souriau UTS Series threaded receptacles, designed for industrial applications with IP68/69K ratings and UV resistance.
The Souriau UTS Series Connection Technologies are plastic connectors designed for industrial applications. They offer a dynamic IP68/69K rating, UV resistance, and compliance with UL and IEC standards. The series is engineered to eliminate the need for hard wiring systems by allowing easy conversion from hard wired to pluggable solutions.
| IP Rating | IP68/69K |
|---|---|
| Thread Types | NPT, PG, M |
| UV Resistance | Yes |
| UL Standard | UL 1977 |
| Fire Rating | UL94-VO |
| Current Rating (2+ground) | 40A/300V |
| Current Rating (3+ground) | 32A/300V |
| Contact Resistance (#20 Ø1mm) | < 6mΩ (Machined) |
They eliminate the need for hard wiring systems by allowing easy conversion from hard wired to pluggable solutions.
Yes, the connectors are UV resistant and suitable for outdoor use.
The series includes NPT, PG, and M threaded receptacles.
Connectors are mated with a simple 1/3 twist of the coupling ring, resulting in an audible and sensitive click.
