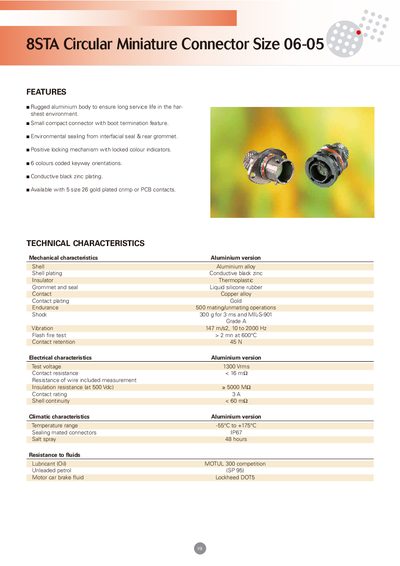

8STA Circular Miniature Connector Size 06-05 20 has an aluminium alloy body and provides 6 colours of coded keyway orientations, with a strong structure and durability. The connector has environmental sealing to prevent dust and water from entering the connector, which can be used in harsh environments. The connector also has a positive locking mechanism to prevent accidental disconnection.
The 8STA circular miniature connector is designed for harsh environments with a rugged aluminium body, conductive black zinc plating, and a positive locking mechanism with colour‑coded indicators. It is available in five‑size 26 gold‑plated crimp or PCB contacts and offers a compact form factor with boot termination.
Technical data include mechanical, electrical and climatic characteristics such as a 500‑cycle mating endurance, 1300 Vrms test voltage, 3 A contact rating, -55 °C to +175 °C temperature range, and IP67 sealing for mated connectors. Ordering information lists the basic series code (8STA 0 06 05 P) and various shell styles, contact layouts and colour orientations.
| Shell material | Aluminium alloy |
|---|---|
| Contact rating | 3 A |
| Test voltage | 1300 Vrms |
| Temperature range | -55 °C to +175 °C |
| IP rating (mated) | IP67 |
| Mating endurance | 500 cycles |
| Contact resistance | < 16 mΩ |
| Insulation resistance (500 Vdc) | 5000 MΩ |
| Shock rating | 300 g for 3 ms |
| Vibration rating | 147 m/s², 10‑2000 Hz |
The connector is rated for a test voltage of 1300 Vrms.
Mated connectors achieve an IP67 sealing rating.
It is designed for up to 500 mating/unmating operations.
The connector operates from –55 °C up to +175 °C.
