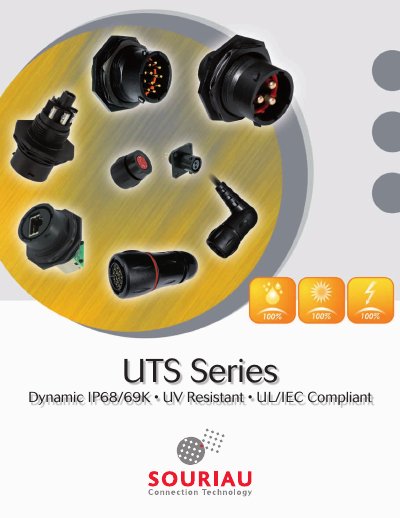

The UTS Series is a dynamic IP68/69K connector that is UV resistant and UL/IEC compliant. This document provides an overview of the UTS Series, including its mechanics, contacts, technical information, and annexes.
The UTS Series is a wide range of plastic connectors designed for industrial applications, offering box‑mounted receptacles, cable‑mounted plugs, in‑line and PCB‑mounted versions. The series supports multiple termination methods (crimp, solder, screw) and includes a RJ45 version for networking.
The document details mechanical durability, environmental resistance (UV, temperature, salt spray, fluid resistance), compliance with UL/IEC standards, and provides layout guides, de‑rating curves, and discrimination/keying methods to aid selection and installation.
| Mechanical durability | 250 matings & unmatings per MIL-C-26482 |
|---|---|
| Operating temperature range | -40°C to +105°C |
| IP rating (standard) | IP68/IP69K (mated) |
| UV resistance | No mechanical degradation after 5 years exposure |
| Flammability rating | UL94‑V0 (all UTS except Hi seal) |
The standard UTS connectors are sealed to IP68/IP69K when mated.
They are rated for 250 matings and unmatings according to MIL‑C‑26482.
They can operate from –40 °C up to +105 °C.
Yes, they show no mechanical degradation after five years of UV exposure.
