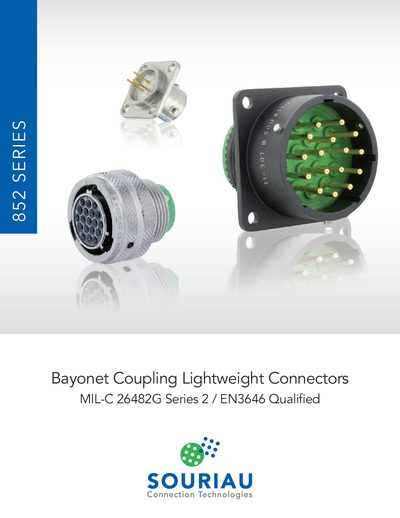

The SOURIAU 852 Series catalog details lightweight bayonet‑coupling connectors, their features, materials, variants, and accessories for aerospace, military…
The 852 Series provides lightweight bayonet‑coupling connectors qualified under MIL‑C‑26482G Series 2 and EN3646. A quick‑release bayonet locking system enables fast mating, and hermetic stainless‑steel versions are available for harsh environments.
Connectors are offered in aluminum or stainless‑steel shells with finishes such as black anodized, nickel, olive‑green cadmium, and yellow cadmium. Various contact types (crimp, solder, PCB‑tail, mini‑coax, thermocouple) and accessories like backshells, caps, and gaskets are supported, meeting requirements for aerospace, military, and telecommunications applications.
| Maximum operating temperature | 200 °C |
|---|---|
| Rear locking teeth | 3 rear teeth at 120° |
| MIL‑C qualification | MIL‑C 26482G Series 2 qualified |
| EN qualification | EN3646 qualified |
| Material and finish options | Aluminum, Stainless Steel; Black Anodized, Nickel, Olive Green Cadmium, Yellow Cadmium |
| Hermetic version | Hermetic stainless steel version available |
They use a quick‑release bayonet locking system for fast mating.
They are qualified under MIL‑C‑26482G Series 2 and EN3646.
Connectors are offered in aluminum or stainless steel with finishes such as black anodized, nickel, olive‑green cadmium, and yellow cadmium.
The connectors can operate up to 200 °C.
