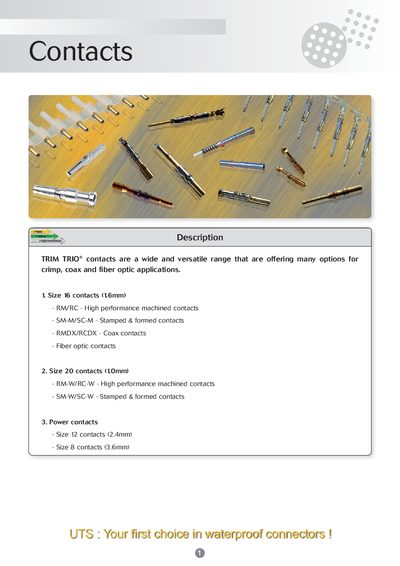

TRIM TRIO® connectors are a wide and versatile range that are offering many options for crimp, coax and fiber optic applications.
The TRIM TRIO® contact series offers a wide variety of machined (RM/RC), stamped (SM/SC) and power contacts in several sizes (16, 20, 12, 8 mm). Each contact is made from high‑conductive copper alloy with optional gold, nickel or silver plating, and features designs for easy mounting, wire identification and reliable retention.
The leaflet provides dimensional tables, ordering information, plating options, crimp‑tooling recommendations and performance data such as maximum current per contact and contact resistance. Power contacts (#12 and #8) are also listed with their electrical characteristics and compatible connector families.
| Maximum current per contact (size 16) | 15 A |
|---|---|
| Maximum current per contact (size 12) | 26 A |
| Contact resistance | ≈5 mΩ |
| Contact body material | High conductive copper alloy |
| Gold plating thickness (standard) | ≥0.4 µm over nickel |
The size‑16 contacts are rated for a maximum current of 15 A.
Yes, the stamped & formed contacts are supplied on reel and are suitable for automatic crimping, reducing installation cost.
All contacts are made from a high‑conductive copper alloy.
