SOURIAU catalog of JBX, JKX, and JAX series push‑pull connectors with features, dimensions, options, and wiring instructions.

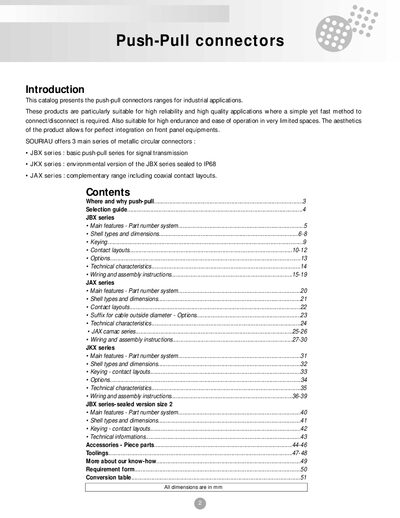

This catalog presents the push‑pull connector ranges for industrial applications. The connectors are designed for high reliability, fast mating, and use in limited spaces, making them suitable for medical, audio‑video, instrumentation, and nuclear physics equipment.
Three series are covered: the basic JBX series for signal transmission, the sealed JKX series (IP68) for harsh environments, and the JAX series with coaxial contact layouts. The document includes part‑number systems, shell types, keying, contact layouts, technical characteristics, wiring and assembly instructions, accessories, tooling, and a conversion table.
| Endurance | >1000 cycles |
|---|---|
| Current rating | up to 30 A |
| Operating temperature range | -40 °C to +125 °C |
| IP rating (sealed version) | IP68 |
| Shielding (unsealed version) | 65 dB up to 100 MHz |
| Maximum contacts per connector | 30 contacts |
| Wire gauge range | 30 AWG to 12 AWG |
The connectors can be configured with up to 30 contacts.
They operate from –40 °C up to +125 °C.
The JKX series is sealed to IP68 when mated.
They are rated for more than 1000 cycles.
