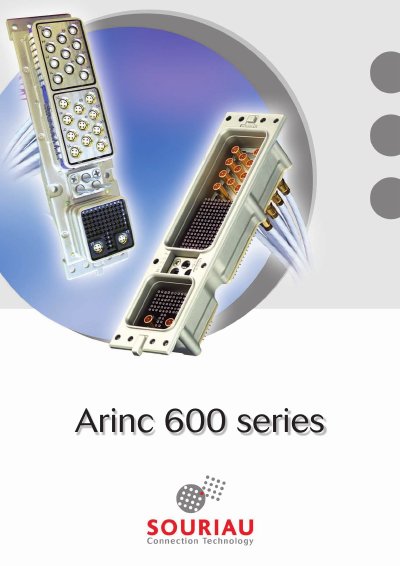

Souriau Arinc 600 series connectors provide high‑performance, high‑density interconnect solutions for severe industrial and aerospace environments.
The Arinc 600 series from Souriau offers rectangular rack‑mount connectors that meet ARINC 600 specifications. They feature low insertion force, high contact counts (up to 800 signal contacts), and options for signal, power, coaxial, triax, quadrax and fiber‑optic contacts.
The catalog details cavity layouts, mounting styles, technical characteristics, and a range of accessories such as backshells, grounding solutions, and insertion/extraction tools, allowing users to configure connectors for specific applications like avionics, radar, and power distribution.
| Insertion force Shell size 1 | 120 N (27 lb) |
|---|---|
| Insertion force Shell size 2 | 267 N (60 lb) |
| Insertion force Shell size 3 | 467 N (105 lb) |
| Endurance (mating cycles) | 500 matings |
| Voltage rating (max) | 500 Vac |
| Current capability (power contacts) | 100 A at 75 °C |
The connectors are rated for a maximum of 500 Vac.
A single connector can accommodate up to 800 signal contacts.
Shell size 2 requires an insertion force of 267 N (60 lb).
