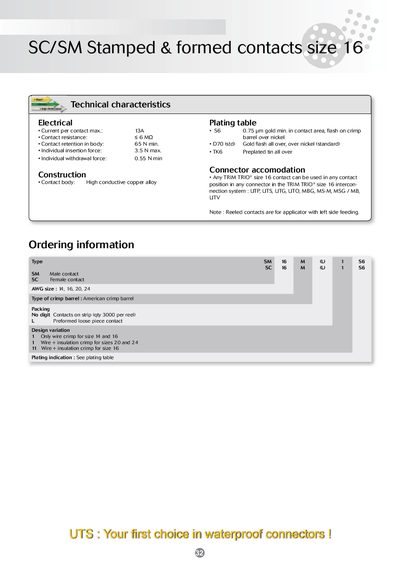

This document introduces the technical characteristics and application information of TRIM TRIO® size 16 SC/SM Stamped & formed contacts, including specifications, dimensions, materials, etc.
The SC/SM stamped and formed contacts size 16 are high‑conductivity copper alloy contacts designed for use in any TRIM TRIO® size 16 connector system. They are available in both male (SM) and female (SC) configurations and support AWG sizes 14, 16, 20 and 24.
Key features include a maximum contact resistance of =6MOQ, a minimum contact retention force of 65 N, and optional plating options such as S6 gold (0.75 µm), D70 gold flash, or TK6 tin. Contacts are supplied on reels (3 000 per reel) or as pre‑formed loose pieces, with compatible American crimp barrels and tooling for both hand and automatic crimping.
| Maximum current per contact | BA |
|---|---|
| Contact resistance | =6MOQ |
| Contact retention force (min) | 65 N |
| Individual insertion force (max) | 3.5 N |
| Individual withdrawal force (min) | 0.55 N |
| Contact body material | High conductive copper alloy |
| Plating – S6 gold minimum | 0.75 µm gold |
| Supported AWG sizes | 14, 16, 20, 24 |
| Crimp barrel type | American crimp barrel |
| Pin size | 1.6 mm (0.063 in) |
| Reel quantity | 3 000 contacts per reel |
The contact resistance is specified as =6MOQ.
The contacts provide a minimum retention force of 65 N.
Plating options include S6 gold (0.75 µm minimum), D70 gold flash, and TK6 pre‑plated tin.
The contacts support AWG sizes 14, 16, 20, and 24.
