8STA series circular miniature connector, ultra compact design, lightweight, rugged aluminium body, ensure long service life in harsh environments. Positive locking mechanism with locked color indicators. 7 color-coded keyway orientations (N, A, B, C, D, E, U). Pin and socket available.
The 8STA circular miniature connector offers an ultra‑compact design with a rugged aluminium body, positive locking mechanism and colour‑coded keyways for easy identification. Various shell styles are available, including oval flange receptacle, in‑line receptacle, PCB‑contact versions and plug configurations.

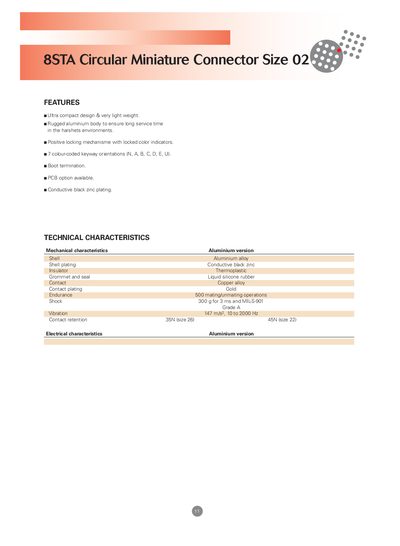

Technical characteristics cover mechanical and electrical data such as aluminium construction, conductive black zinc plating, gold‑plated copper‑alloy contacts, 500 mating cycles endurance, shock resistance of 300 g for 3 ms, and vibration tolerance up to 147 m/s². Detailed dimensions, contact layouts, crimping tools and shrinkable termination options are also provided.
| Material | Aluminium version |
|---|---|
| Shell plating | Conductive black zinc |
| Insulator | Thermoplastic |
| Grommet and seal | Liqguid silicone rubber |
| Contact material | Copper alloy |
| Contact plating | Gold |
| Endurance | 500 mating/unmating operations |
| Shock resistance | 300 g for 3 ms |
| Vibration tolerance | 147 m/s², 10‑2000 Hz |
| Contact retention (size 26) | 35 N |
The connector is rated for 500 mating/unmating operations.
Available shell styles include oval flange receptacle, in‑line receptacle, oval flange receptacle with PCB contacts, and plug.
The contacts are gold‑plated.
