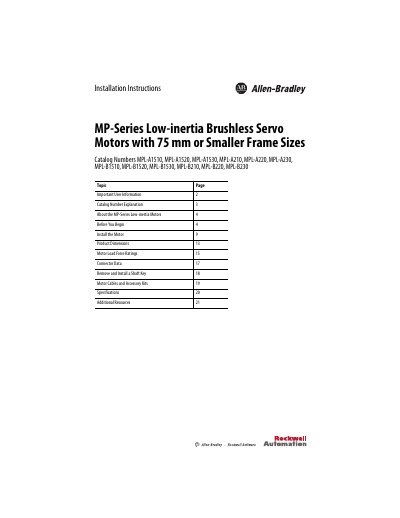

Installation guide for Rockwell Automation MP-Series low‑inertia brushless servo motors (≤75 mm frame) with catalog numbers, safety instructions and…
This document provides step‑by‑step installation instructions for the MP‑Series low‑inertia brushless servo motors with frame sizes of 75 mm or smaller. It covers safety precautions, handling, mounting, connector orientation, shaft key removal, and cable routing to ensure proper operation and compliance with applicable codes.
Additional sections describe motor dimensions, load force ratings, connector data, shaft‑seal kits, accessory cables, and detailed technical specifications such as temperature limits, IP ratings, and environmental conditions. References to related Rockwell Automation publications and accessory part numbers are also included.
| Operating temperature range | 0 … 40 °C (32 … 104 °F) |
|---|---|
| Storage temperature range | -30 … 70 °C (-22 … 158 °F) |
| Relative humidity (storage) | 5 … 95% non‑condensing |
| Shock rating | 20 g peak, 6 ms duration |
| Vibration rating | 2.5 g, 30 … 2000 Hz |
| Ingress Protection (IP) rating with shaft seal | IP66 |
| Rated speed options | 5000, 6000, 7000, 8000 rpm |
Shaft seals should be inspected regularly and replaced every 3 months, but not less frequently than every 12 months depending on use.
