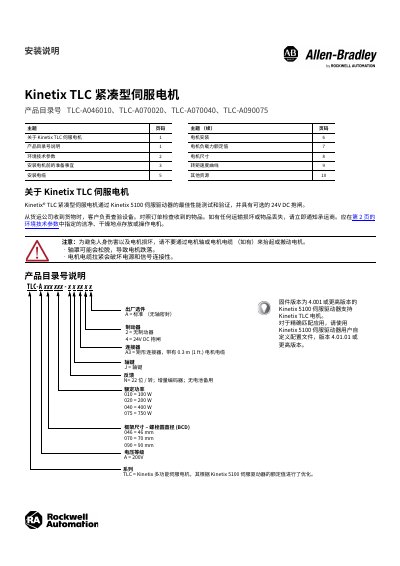

Rockwell Automation Kinetix TLC-A046010/A070020/A070040/A090075 Compact Servo Motor Installation Guide

This installation guide provides step‑by‑step procedures, environmental requirements, and specifications for Rockwell Automation’s Kinetix TLC compact servo…

Brand: Rockwell Automation
Category: Industrial Robot
Document type: Installation Guide
Language: Chinese
Pages: 10
File format: PDF
File size: 1.4 MB
Published: 06 October, 2026
Updated: 06 October, 2026
MD5 checksum: 7E53144E33DF4321492E2472DCA7B8EA
PDF: Rockwell Automation Kinetix TLC-A046010/A070020/A070040/A090075 Compact Servo Motor Installation Guide PDF

About this manual

The document explains how to receive, inspect, and safely install Kinetix TLC compact servo motors. It covers storage, preparation, mounting, cable routing, brake setup, shaft‑seal installation, and safety precautions.

Key sections include environmental technical parameters, motor dimensions, torque‑speed curves, cable and connector information, brake and shaft‑seal options, and detailed installation steps with diagrams and tables. This manual is written in Chinese.

What's inside

Motor Installation
Environmental Technical Parameters
Motor Dimensions
Torque‑Speed Curve
Cable Installation
Brake (24V DC Hold)
Shaft Seal Kit
Safety Precautions
Specifications

Specifications

Rated Voltage	200 V
Rated Speed	3000 rpm
Continuous Torque	0.32 – 2.39 N·m
Peak Torque	1.03 – 7.51 N·m
Rated Output Power	0.10 – 0.75 kW
IP Rating (no seal)	IP20
Maximum Cable Length	30 m (98 ft)

Frequently asked questions

How often should the shaft seal be inspected or replaced?

Inspect the shaft seal regularly and replace it every 3 months, but not longer than 12 months.

What is the maximum allowed length for the motor cable?

The motor cable can be up to 30 m (98 ft) long.
