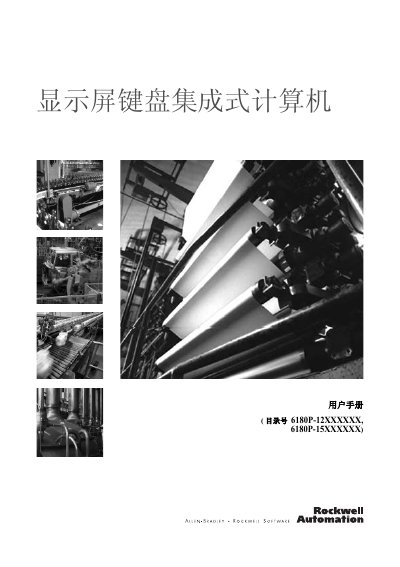

User manual for Rockwell Automation 6180P integrated display‑keyboard computer covering installation, operation, component replacement, troubleshooting and…
This manual provides detailed guidance for the Rockwell Automation 6180P integrated display‑keyboard computer, available in 12‑inch and 15‑inch models. It includes system features, product options, hardware specifications, and required tools for installation.
The document walks the user through installation steps, operating procedures, component replacement (hard drive, optical drive, memory, etc.), troubleshooting methods, and routine maintenance such as cleaning the display and replacing the RTC battery. Appendices contain full technical specifications, touchscreen usage, and BIOS upgrade instructions. This manual is written in Chinese.
| Display size (12‑inch model) | 12.1 in (308 mm) |
|---|---|
| Resolution | 800 × 600 (12‑inch) / 1024 × 768 (15‑inch) |
| AC input voltage | 90 – 264 V AC, auto‑switching |
| Power consumption (AC) | 144 VA (1.4 A @100 V, 0.6 A @240 V) |
| Operating system | Microsoft Windows XP Professional SP2b |
The unit accepts an AC input voltage of 90 – 264 V, with automatic switching between ranges.
The 12‑inch model (1200P) provides 36 programmable function keys.
First remove the rear cover, then follow the hard‑drive replacement procedure described in Chapter 4.
