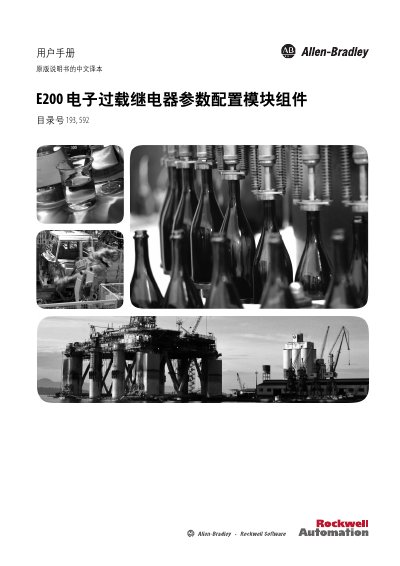

Rockwell Automation E200 Electronic Overload Relay Parameter Configuration Module User Manual

About this manual

This manual describes the E200 electronic overload relay parameter configuration module, covering installation steps, wiring diagrams, configuration procedures, and safety requirements. It also lists the required documentation and resources for proper setup and maintenance.

The document includes detailed sections on module features, single‑phase and three‑phase operation, thermal overload characteristics, current monitoring, ground‑fault protection, I/O extensions, protection functions, diagnostics, DeviceLogix programming, and Connected Components Workbench software configuration. This manual is written in Chinese.

What's inside

• Overview
• Module Description and Features
• Single‑phase / Three‑phase Operation
• Thermal Overload Characteristics
• Current Monitoring
• Ground Fault Protection
• Extension Digital I/O
• Extension Analog I/O
• Protection Functions
• Diagnostics and Fault Handling

Specifications

Frequently asked questions

What safety warnings are included in the manual?

The manual warns about explosion hazards, electric shock, burns, and arc‑flash dangers and advises the use of appropriate personal protective equipment.

Where can I find the E200 parameter Excel spreadsheet?

The Excel spreadsheet with E200 parameters is attached to the PDF and can be accessed via the link in the manual.
