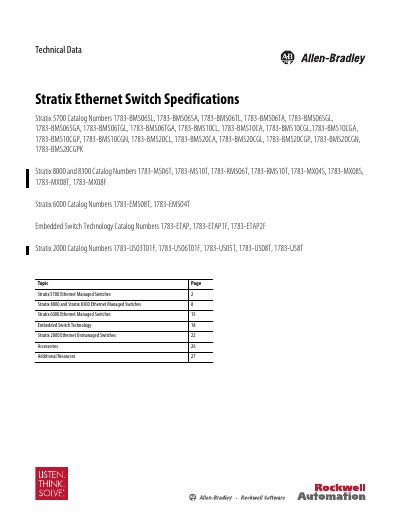

Technical specifications, environmental data, certifications, dimensions, and port details for Rockwell Automation Stratix Ethernet switches.
This document provides detailed technical data for the Stratix series of Ethernet switches, including the 5700, 6000, 8000, 8300, Embedded Switch Technology, and 2000 models. It lists catalog numbers, port configurations, power requirements, and mechanical dimensions for each switch variant.
Environmental specifications, certification listings (UL, CE, ATEX, etc.), optional expansion modules, and accessory part numbers are also included, along with references to related manuals and additional resources.
| Power requirements | 0.5…2.0 A max @ 12…48 V DC |
|---|---|
| Power consumption (24 V DC, 40 °C) | 9.5 W |
| Isolation voltage (continuous) | 50 V |
| Number of ports (5700 series) | 6‑port switches |
The alarm relay rating is 1 A @ 30 V DC or 0.5 A @ 48 V DC.
It is UL Listed for industrial control equipment, CE compliant, C‑Tick certified, and meets ATEX and Korean radio‑communication requirements.
Supported SFP modules include 1783‑SFP100FX, 1783‑SFP100LX, 1783‑SFP1GSX, and 1783‑SFP1GLX.
