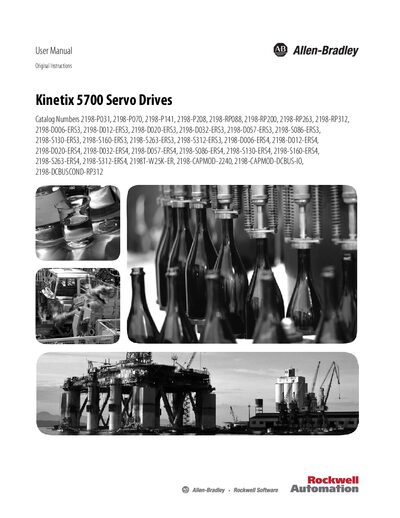

This document is the user manual of Kinetix 5700 servo drive. It introduces the drive's model, installation, configuration, operation and maintenance.
This manual covers safety requirements, installation steps, wiring guidelines, and configuration procedures for the Kinetix 5700 servo drive system. It emphasizes that all work must be performed by suitably trained personnel and in compliance with applicable codes, laws, and standards.
The document is organized into chapters that detail system planning, mounting, connector data, power‑supply configuration, drive startup, troubleshooting, module replacement, and the Safe Torque‑off safety feature. Detailed diagrams, pinout tables, and example wiring layouts support the implementation and maintenance of the drive system.
| DC‑bus power supply rating | 1 HP, 480 V, 2.7 A input |
|---|
Installation, configuration, and operation must be performed by suitably trained personnel following applicable codes, laws, and standards.
DC‑bus voltage regulation is disabled by default; it can be enabled via the Converter Startup Method settings in Studio 5000 Logix Designer.
Safe Torque‑off provides a quick way to disable drive output for safety, with specific wiring and connector information included in the manual.
