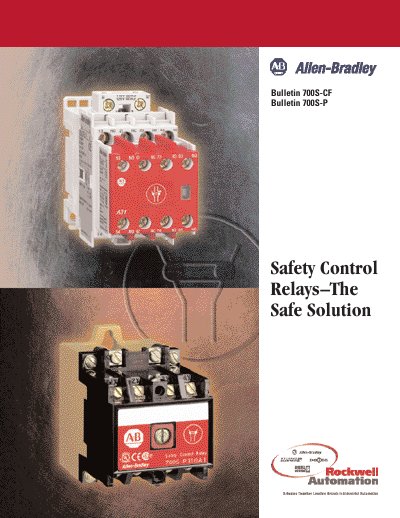

Bulletin for Rockwell Automation 700S-CF and 700S-P safety control relays, detailing features, specifications, dimensions and compliance.
The 700S-CF and 700S-P safety control relays are designed to meet worldwide safety standards and are intended for use in safety circuits such as e‑stops, safety gates and light curtains. They feature mechanically‑linked contacts, double‑break contacts, a red faceplate for easy identification and anti‑tamper protection.
The bulletin provides product selection guidance, electrical and mechanical specifications, connection diagrams, dimensions and conformity to IEC, EN, CSA and UL standards. It also includes example safety circuit applications and ordering information.
| Maximum current rating | 20 A |
|---|---|
| Contact rating (AC) | NEMA A600 |
| Insulation voltage (main poles) | 8 kV |
| Mechanical life | 12.5 million operations |
| Storage temperature range | -55 °C to +80 °C |
The relays are rated for up to 20 A continuous current.
They meet IEC 60947‑5‑1, EN 50011, EN 50005, EN 50022, CSA, UL 508 and are CE certified.
The contacts are rated for 12.5 million operations.
They can be stored from –55 °C up to +80 °C.
