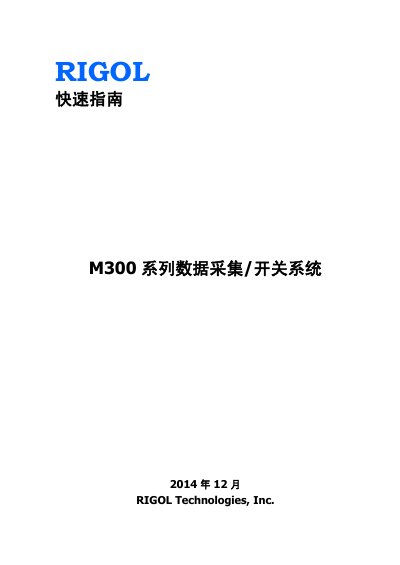

Quick guide for the RIGOL M300 series data acquisition and switch system covering safety, operation, and basic troubleshooting.
The RIGOL M300 Quick Guide introduces the front and rear panels, user interface, and basic measurement functions of the data acquisition/switch system. It includes safety requirements, handling, cleaning, and environmental considerations to help users become familiar with the instrument quickly.
The guide also provides step‑by‑step instructions for basic operations such as connecting measurement signals, configuring scan lists, remote control, and troubleshooting common issues like power‑up problems, interface failures, and lockouts. This manual is written in Chinese.
| Supported AC Voltage | 115 V / 230 V |
|---|---|
| Power Fuse Specification | AC 250 V T3.15 A |
| DMM Module Power Fuse | AC 250 V T250 mA |
| GPIB Interface Standard | IEEE‑488.2 |
| External Wiring Box Models | M3TB20 (for MC31), M3TB32 (for MC3132), M3TB64 (for MC3164) |
Press Utility → System, select Language, and choose the desired language using the up/down direction keys.
Turn off the instrument and unplug the power cord. Use a flat‑head screwdriver to open the fuse cover, remove the old fuse, and install a new fuse with the specified rating (AC 250 V T3.15 A). Reinstall the cover and restore power.
