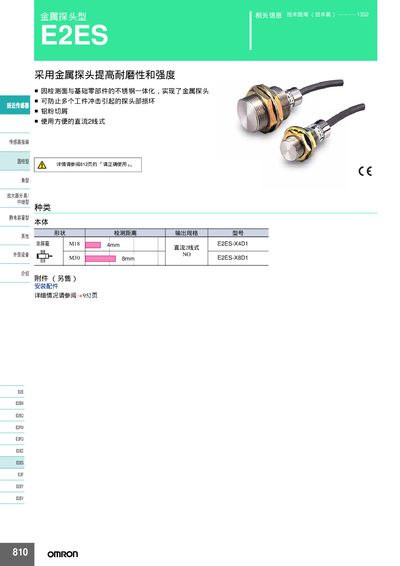

The OMRON E2ES-X4D1 and E2ES-X8D1 metal probe sensors datasheet provides specifications, dimensions, electrical characteristics, and installation information.
The E2ES-X4D1 and E2ES-X8D1 are metal probe sensors designed for detecting magnetic and ferrous metal objects with high wear resistance. They feature a compact design and are suitable for integration into automated equipment.
The datasheet lists key performance data such as detection range, operating voltage, leakage current, IP67 protection, and environmental limits, as well as mechanical dimensions and recommended installation accessories. This manual is written in Chinese.
| Detection range (E2ES-X4D1) | 0–2.8 mm |
|---|---|
| Operating voltage | DC12 – 24 V |
| Leakage current | ≤0.8 µA |
| Output current | 3 – 100 mA |
| IP protection rating | IP67 |
| Sensing surface material | SUS303 stainless steel |
The sensors operate from DC12 to DC24 volts.
Both models have an IP67 rating, providing protection against dust and immersion.
The leakage current is limited to 0.8 µA or less.
