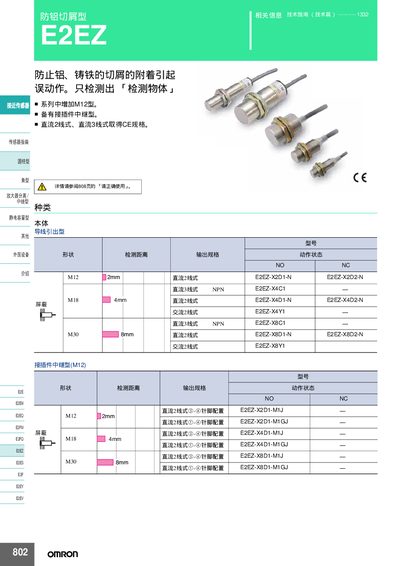

E2EZ anti-aluminum chip type proximity switch technical guide, introduces the product features, models, specifications and other information.
This guide covers the E2EZ series of proximity sensors, describing the different sensor types (cylindrical, angular, capacitive, etc.), their electrical characteristics, and recommended mounting methods. It includes tables of model numbers, detection distances, output specifications, and environmental limits.
The document also provides wiring diagrams, connector details, accessory part numbers, and safety precautions such as protection against metal debris, fastening torque values, and operating temperature and humidity ranges. This manual is written in Chinese.
| Detection distance (E2EZ‑X2D) | 2 mm +10% |
|---|---|
| Supply voltage (Y type) | AC100 – 220 V, 50/60 Hz |
| Output contact type | NO / NC |
| Operating humidity range | 35 % – 95 % RH |
| Leakage current (max) | ≤0.8 mA |
The sensor provides either normally‑open (NO) or normally‑closed (NC) contacts.
