This document describes the features and characteristics of products such as E3MC E3C-VS /VM E3M-V F3C-AL E3Z-Laser E3X-NL E3S-CR62 /67 E3S-R E3HQ E3S-LS3� F3UV E3S-5E4S -45.

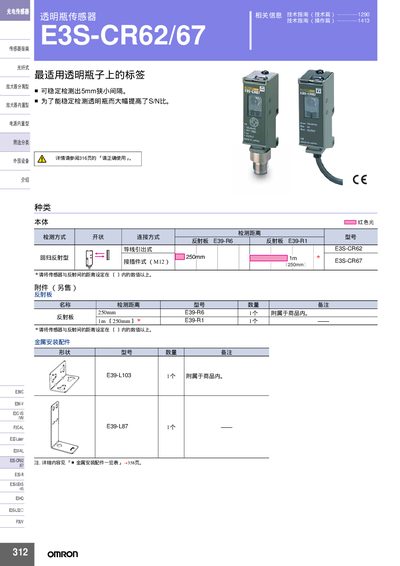

The E3S-CR62/67 series are photoelectric sensors designed for detecting small gaps (as little as 5 mm) on transparent bottles. They use a red LED (650 nm) and optional reflector plates to achieve reliable detection.
The manual covers technical specifications, wiring diagrams, output options (NPN/PNP open‑collector), installation guidelines, safety precautions, and adjustment procedures such as the fuzzy‑interference‑prevention function and sensor‑to‑reflector distance setting. This manual is written in Chinese.
| Light source wavelength | 650 nm (red LED) |
|---|---|
| Supply voltage | DC10 ~ 30 V |
| Power consumption | ≤ 40 mA |
| Load short‑circuit protection voltage | ≤ DC30 V |
| Output type | NPN/PNP open‑collector |
| Response time | ≤ 1 ms |
| Operating temperature | -25 ~ +55 °C |
| Operating humidity | 35 ~ 85 %RH |
| Ingress protection | IP67 |
| Weight | ≈ 115 g |
| Standard cable length | 2 m |
The sensor should be set at a distance greater than the minimum value specified for the chosen reflector; the exact minimum is listed in the table for each reflector model.
It uses a fuzzy‑interference‑prevention function that monitors interfering light and waits for the interference to subside before projecting, reducing false triggers.
The sensor provides selectable NPN or PNP open‑collector outputs, which can be switched via a built‑in switch.
