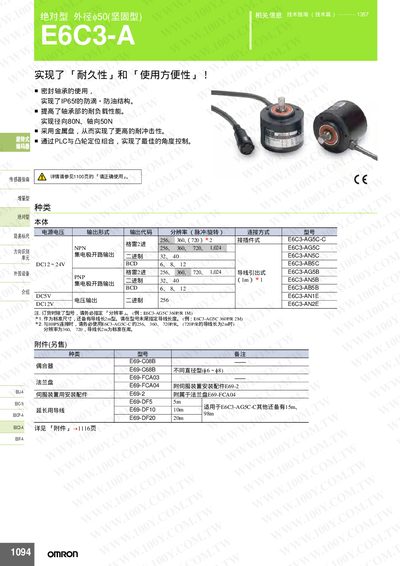

E6C3-A is a rugged absolute encoder with IP65f protection and improved load capacity. It is easy to use and can be used with PLCs and cam positioning.
This manual provides detailed information for the Omron E6C3-A incremental encoder, including electrical specifications, environmental ratings, and mechanical dimensions. It contains wiring diagrams, connection examples with PLCs and cam positioners, and a list of optional accessories.
The document also describes configuration options such as power supply voltage, output type, resolution settings, and mounting guidelines. Safety notes, handling instructions, and CAD data for the encoder are included to assist technicians during installation and maintenance. This manual is written in Chinese.
| Output type | NPN open‑collector |
|---|---|
| Resolution options | 256, 360, 720, 1,024 pulses per rev |
| Maximum load capacity | Radial 80 N, Axial 50 N |
| Operating temperature range | -10 °C to +70 °C |
| Storage temperature range | -25 °C to +85 °C |
| Output rise time | ≤ 3 µs |
| Insulation resistance | ≥ 20 MΩ |
It can be configured for 256, 360, 720, or 1,024 pulses per revolution.
The shaft can handle up to 80 N radial and 50 N axial load.
