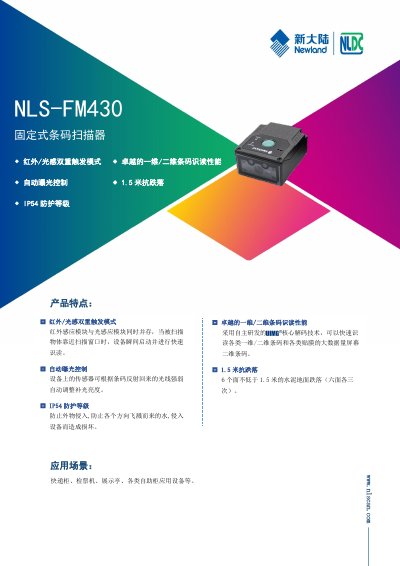

Product leaflet for the Newland NLS-FM430 fixed barcode scanner featuring dual trigger modes, IP54 rating, and 1.5m drop resistance for self-service terminals.
The Newland NLS-FM430 is a fixed barcode scanner designed for self-service equipment such as express lockers, ticket machines, and display kiosks. It features a dual trigger mode combining infrared and light sensing for instant activation, along with automatic exposure control to adapt to varying lighting conditions. This manual is written in Chinese.
| Image Sensor | CMOS |
|---|---|
| Resolution | 960 x 640 pixels |
| Illumination | White LED (400nm~750nm) |
| Focus | Green LED (510nm~540nm) |
| Drop Resistance | 1.5 meters |
| Protection Rating | IP54 |
| Communication Interfaces | RS-232, USB |
| Operating Voltage | 5 VDC ±5% |
| Operating Temperature | -20°C to +60°C |
| Dimensions | 41.5(W) x 49.5(D) x 24.5(H) mm |
It is suitable for express lockers, ticket machines, display kiosks, and various self-service cabinet application devices.
It uses a dual trigger mode with both infrared and light sensing modules to start instantly when an object approaches the scanning window.
The device can withstand a drop of 1.5 meters onto a cement ground from six different sides, with three drops per side.
