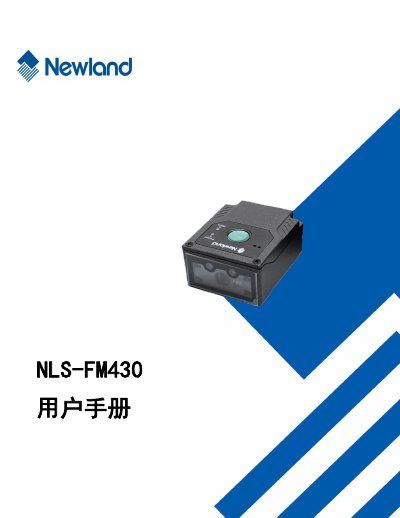

Newland NLS-FM430 Barcode Scanner User Manual
The Newland NLS-FM430 is an automatic identification device designed for scanning various barcode formats. This user manual covers the device's introduction, physical appearance, and connection methods to a host computer via USB or RS-232 interfaces.
The guide details how to configure the system settings, including LED indicators, audio prompts, and scanning modes. It also explains how to set up communication parameters for both RS-232 and USB connections, and provides comprehensive instructions for enabling or disabling specific barcode symbologies. This manual is written in Chinese.
Newland NLS-FM430 specifications
| Image Sensor | CMOS |
|---|---|
| Resolution | 960 x 640 pixels |
| Illumination | White LED (400nm~750nm) |
| Focus | Green LED (510nm~540nm) |
| Drop Resistance | 1.5 meters |
| Protection Rating | IP54 |
| Communication Interfaces | RS-232, USB |
| Operating Voltage | 5 VDC ±5% |
| Operating Temperature | -20°C to +60°C |
| Dimensions | 41.5(W) x 49.5(D) x 24.5(H) mm |
Source: Newland NLS-FM430 Fixed Barcode Scanner Product Leaflet
All Newland NLS-FM430 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What are the main application scenarios for the NLS-FM430?
It is suitable for express lockers, ticket machines, display kiosks, and various self-service cabinet application devices.
From: Newland NLS-FM430 Fixed Barcode Scanner Product Leaflet
How does the scanner trigger?
It uses a dual trigger mode with both infrared and light sensing modules to start instantly when an object approaches the scanning window.
From: Newland NLS-FM430 Fixed Barcode Scanner Product Leaflet
What is the NLS-FM430?
The NLS-FM430 is a barcode scanner.
