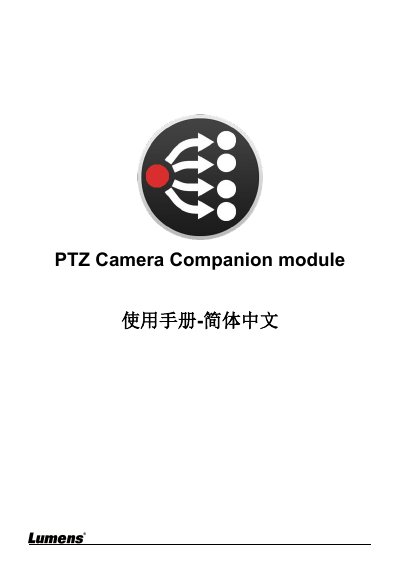

This manual provides installation, configuration, and operation instructions for the Lumens Companion Module software used to control PTZ cameras and…
The document serves as a user guide for the Lumens Companion Module, detailing system requirements and installation procedures for Windows and Mac operating systems. It explains how to add devices such as cameras and media processors via network settings or preset buttons within the software interface.
Key sections cover the operation of various interfaces including instances, configurations, and button editing. The manual also provides specific lists of available preset actions for PTZ camera control (zoom, pan, presets) and recording system functions (audio/video routing, snapshots), along with troubleshooting steps for common connection issues. This manual is written in Chinese.
| Supported Operating Systems (Windows) | Windows 7 / 10 |
|---|---|
| Supported Operating Systems (Mac) | Mac 10.13 or later |
| Camera Target Port | 52381 |
| Recording System Target Port | 5080 |
The target port for cameras should be set to 52381.
The target port for recording systems should be set to 5080.
Some default positions may already be in use by the VC-TR1 device, so they will not appear as options.
