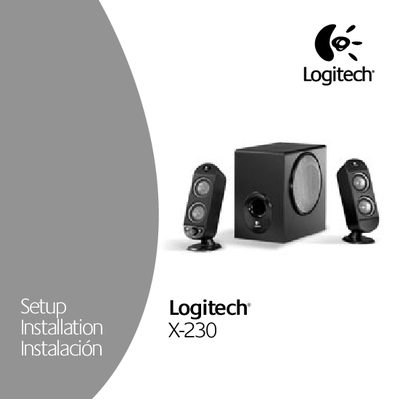

Installation guide for the Logitech X-230 speaker system with safety instructions, setup steps, specifications and warranty details.
The Logitech X-230 speaker system includes a subwoofer and two satellite speakers. This guide provides safety warnings, step‑by‑step setup instructions, and information on mounting the speakers to a wall.
It also lists the technical specifications, such as power output, frequency response, and dimensions, and explains the limited two‑year warranty coverage.
| Total RMS Power | 32 Watts |
|---|---|
| Subwoofer RMS Power | 20 Watts RMS into 4 Ω at 100 Hz |
| Satellite RMS Power | 12 Watts RMS (2 × 6 W) into 4 Ω |
| Total Peak Power | 64 Watts |
| System THD | Better than 0.05% THD |
| Signal‑to‑Noise Ratio | >96 dB |
| Frequency Response | 40 Hz – 20 kHz |
| Driver Size | 2" satellites, 5.25" subwoofer |
| Satellite Dimensions | 8" H × 2.5" W × 3" D |
| Subwoofer Dimensions | 9" H × 6" W × 9.25" D |
Set up the system first, then plug it into a power source.
When headphones are connected, the speakers mute automatically for private listening.
