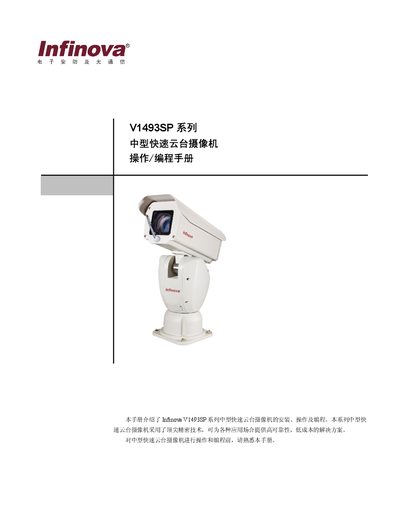

The Infinova V1493SP medium fast pan‑tilt camera operation and programming manual provides installation instructions, menu programming, and protocol details.
The V1493SP series is a medium‑size fast pan‑tilt camera with IP66 protection, a wide temperature range, and high‑precision positioning. It can be equipped with 13‑, 14‑ or 15‑inch housings and supports multiple communication protocols for CCTV systems.
This manual covers product description, model options, performance features, installation methods (table, wall, pole, corner), basic operation, preset and tour programming, menu programming, I‑D‑P protocol commands, technical specifications, troubleshooting, dip‑switch settings, cable connections, and detailed camera menu settings for several camera models. This manual is written in Chinese.
| Horizontal speed range | 0.5°–45°/s |
|---|---|
| Vertical speed range | 0.5°–20°/s |
| Continuous horizontal rotation | 360° |
| Vertical rotation angle | 40° to -90° |
| IP protection rating | IP66 |
| Operating temperature range | -40 °C to 60 °C |
| Preset recall speed (horizontal) | 100°/s |
| Preset recall speed (vertical) | 30°/s |
It supports PELCO‑P/D, INFINOVA and optional coaxial video‑control protocols.
The camera can store up to 254 preset positions, including special presets.
The unit has an IP66 protection rating.
It operates from –40 °C to 60 °C.
